MSNswitch Max
with Wi-Fi, Metering, Surge Protection & Noise Filtration
The MSNswitch Max features two individually controllable outlets encased in a fire-resistant plastic housing. Designed for autonomous operation, it can resolve network issues without outside intervention. Once setup, it continuously monitors connectivity and automatically resets device if connection is lost, significantly reducing the need for manual attention, truck rolls, and costly downtimes.
Harness Wireless Convenience
This UIS-801 device comes equipped with the cutting-edge technology, including WiFi 6 and BT 5.3, providing users with the flexibility required for installations in hard-to-reach areas. This ensures robust connectivity even in challenging environments.
Monitor Energy Usage
One of the features of this device is its built-in power metering capabilities. Users can monitor the power consumption of connected device over time, allowing them to keep track of energy usage and make informed decisions. Additionally, the UIS-801 can be configured to send notifications if any connected device exhibits abnormal power consumption patterns. This proactive feature helps in identifying potential issues before they escalate.
Safety and Performance
The device is designed with surge protection and noise filters, ensuring the safety and reliability of connected devices. Surge protection guards against voltage spikes, while noise filters enhance the quality of the electrical signal, reducing interference and improving overall performance.
5VA Fire Resistance
Further enhancing its robustness, the UIS-801 casing is forged from 5VA fire-resistant polycarbonate material, the highest standard, ensuring superior safety in critical installations.

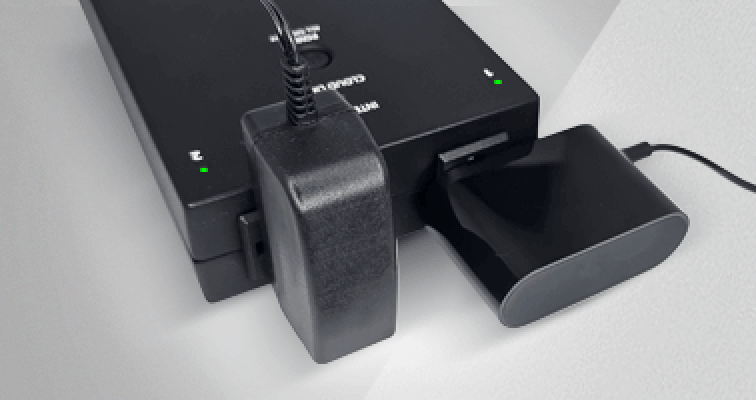

Sensible Outlet Design
The two outlets are thoughtfully designed at 90-degree to each other and are appropriately spaced apart. This design offers great flexibility for connecting various types and sizes of power adapters, ensuring that user can easily accommodate their specific power needs.
Cloud4UIS Management Platform
Manage and control MSNswitch MAX through Cloud4UIS.com or the ezDevice app.
- Install ezDevice APP and scan to locate device.
- Device connects to nearest Wi-Fi AP or is connected via Ethernet cable to router.
- Device auto pairs with user’s Cloud4UIS account.
Remotely Access and control devices
Manage and monitor devices on a single platform
Share device with other cloud users
Assign access permission to shared user
Designate Favorite to make unit easily available
Stay updated with latest OTA frmware upgrades
Remotely Access and control devices
Manage and monitor devices on a single platform
Share device with other cloud users
Assign access permission to shared user
Designate Favorite to make unit easily available
Stay updated with latest OTA frmware upgrades
Notable Features
Ver.:5c15
| Product Name | MSNswitch MAX (with Wi-Fi, Metering, Surge & EFT Protection) | ||
| Model No. | UIS-801BC (Made in China) UIS-801BT (Made in Taiwan) |
||

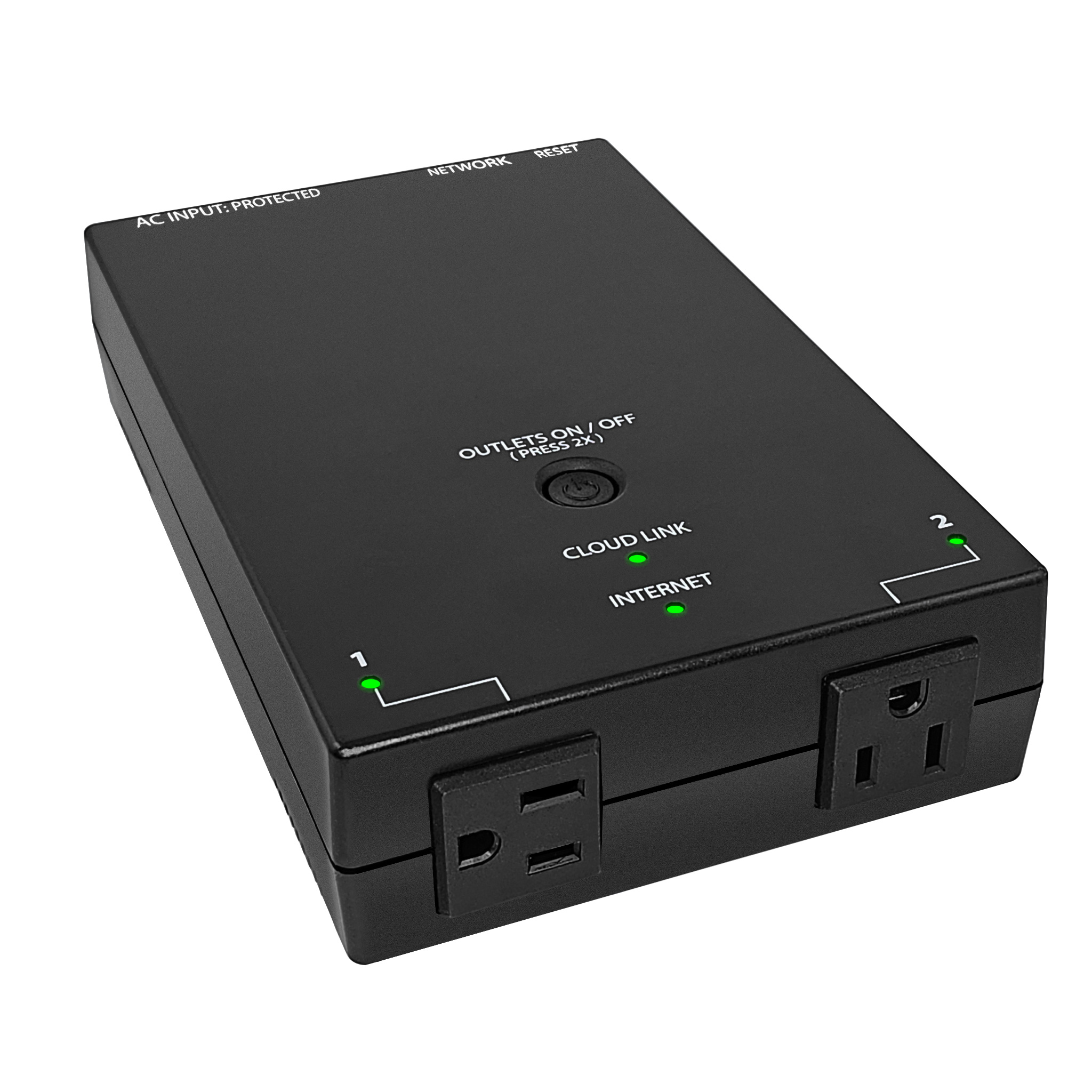

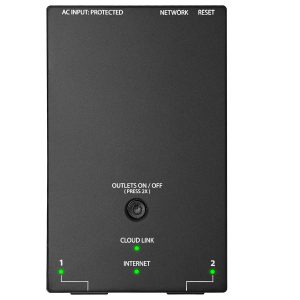

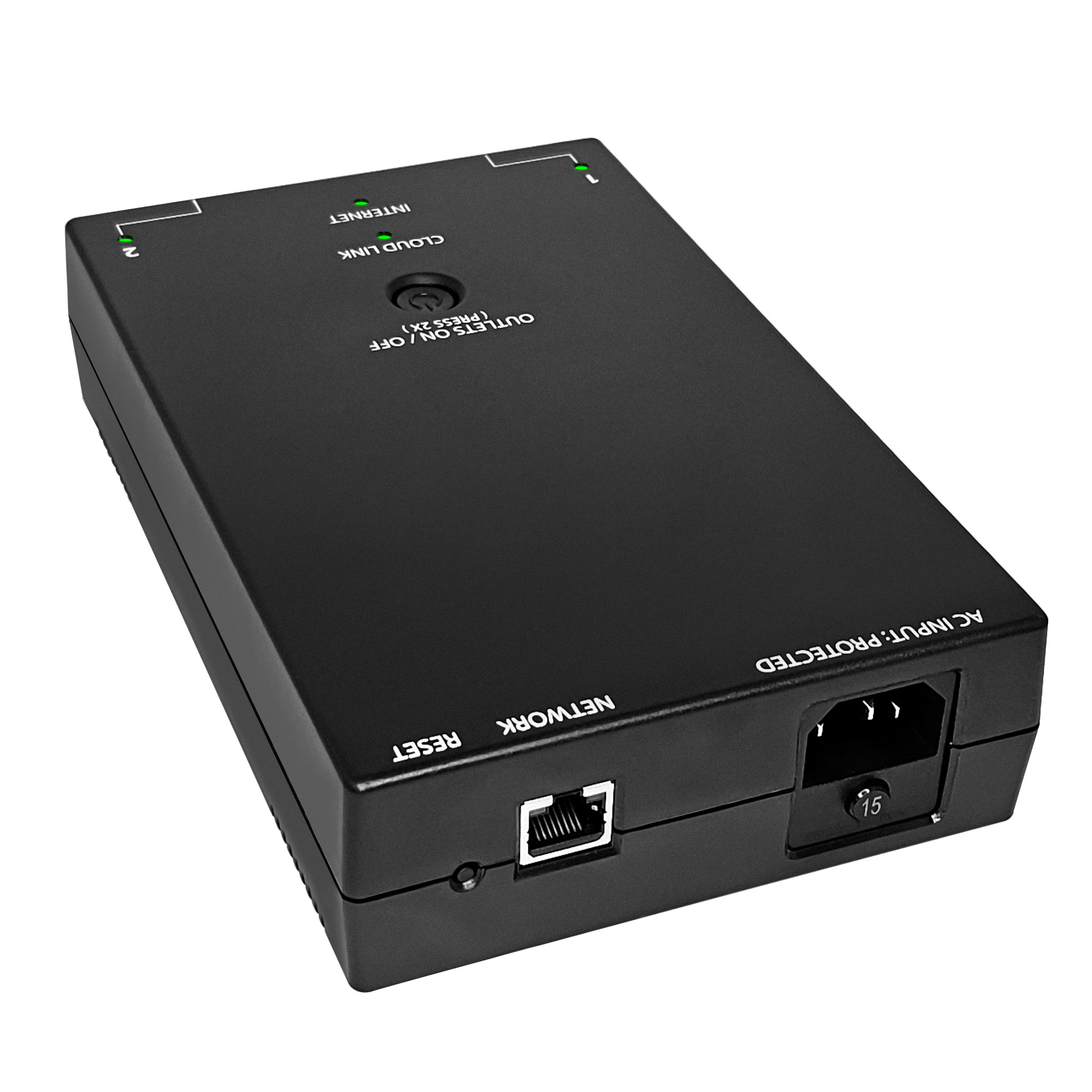

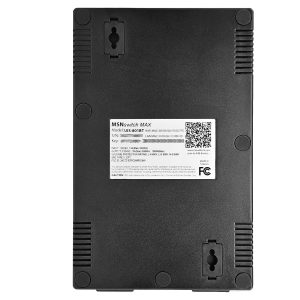

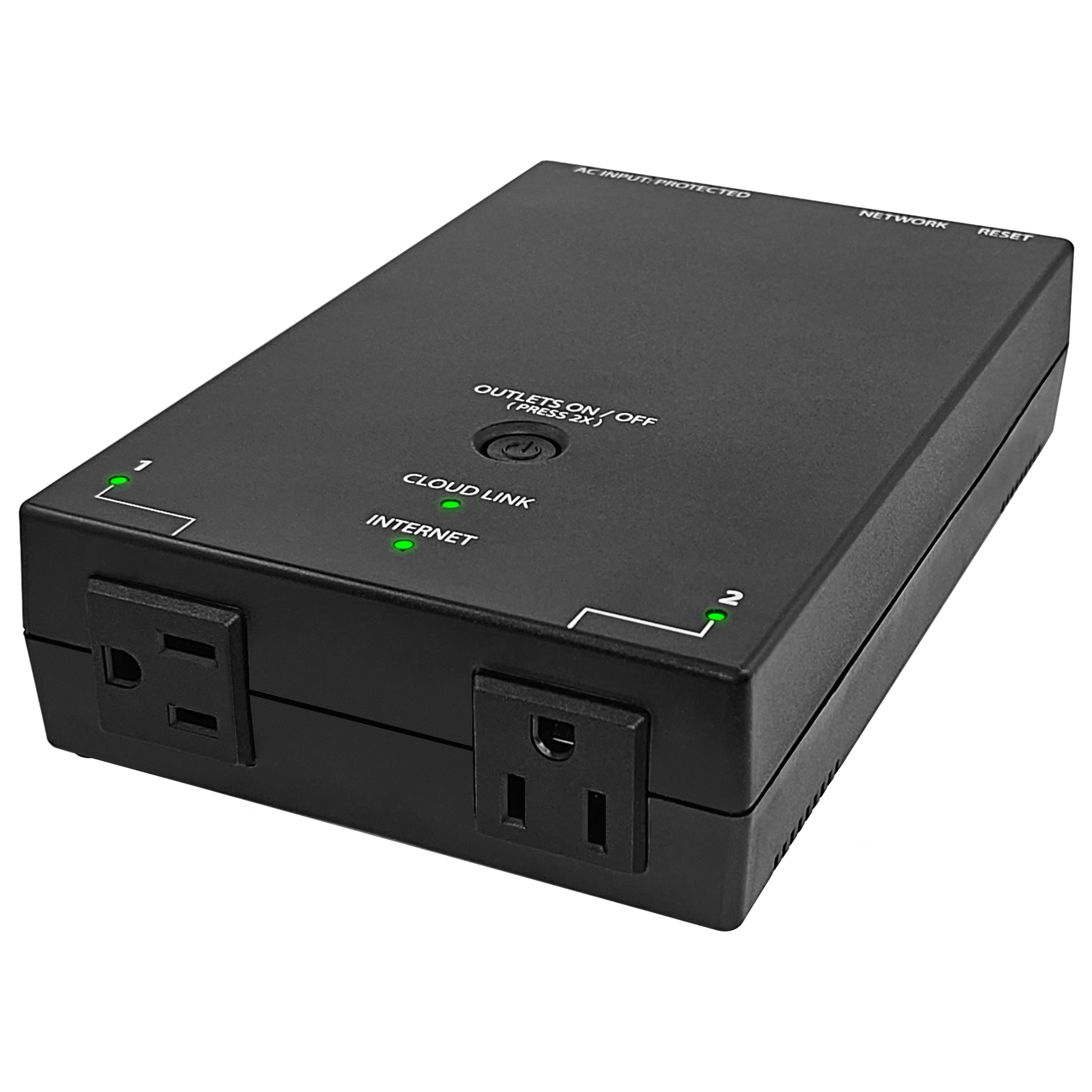

| Image (Front, Back) |
|
||

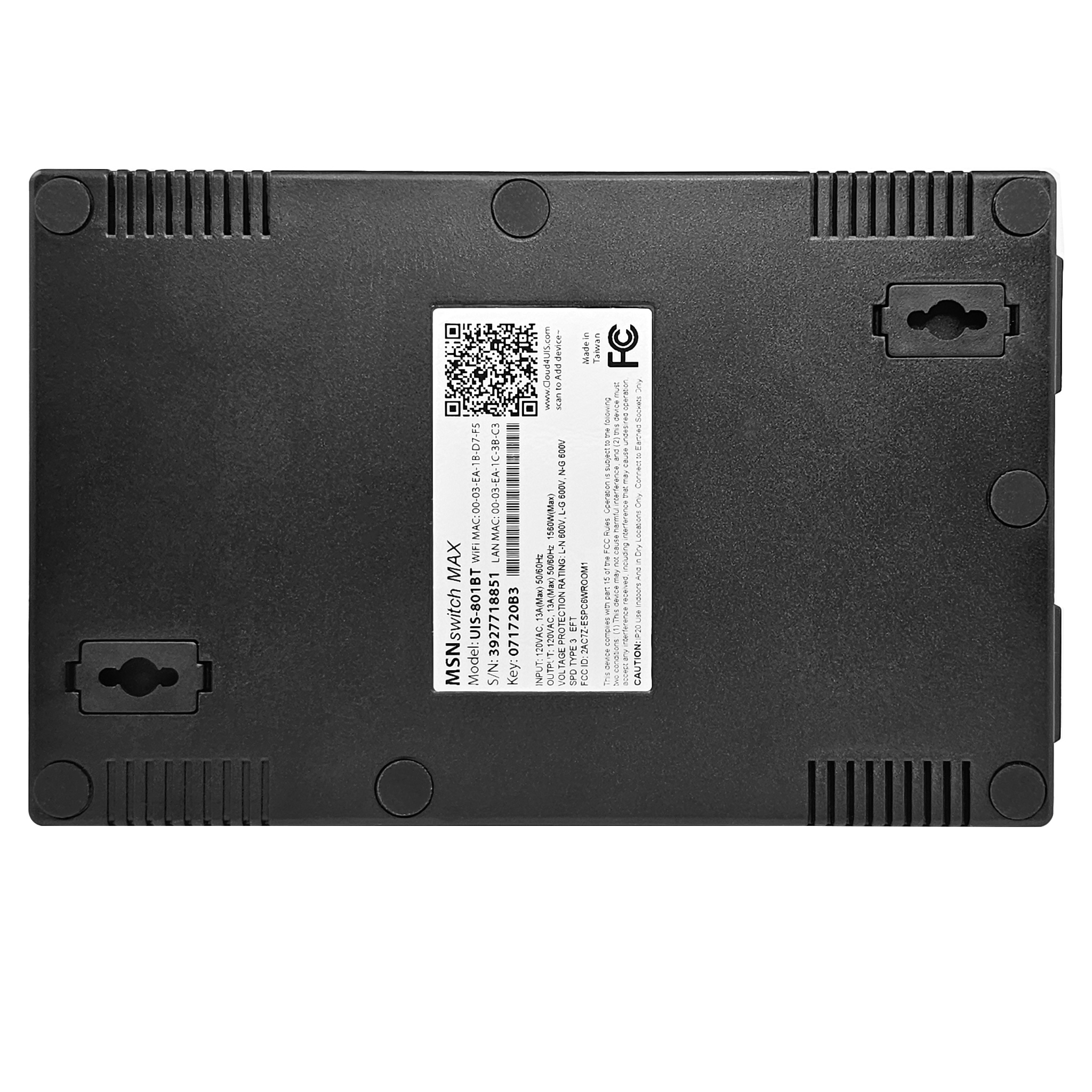

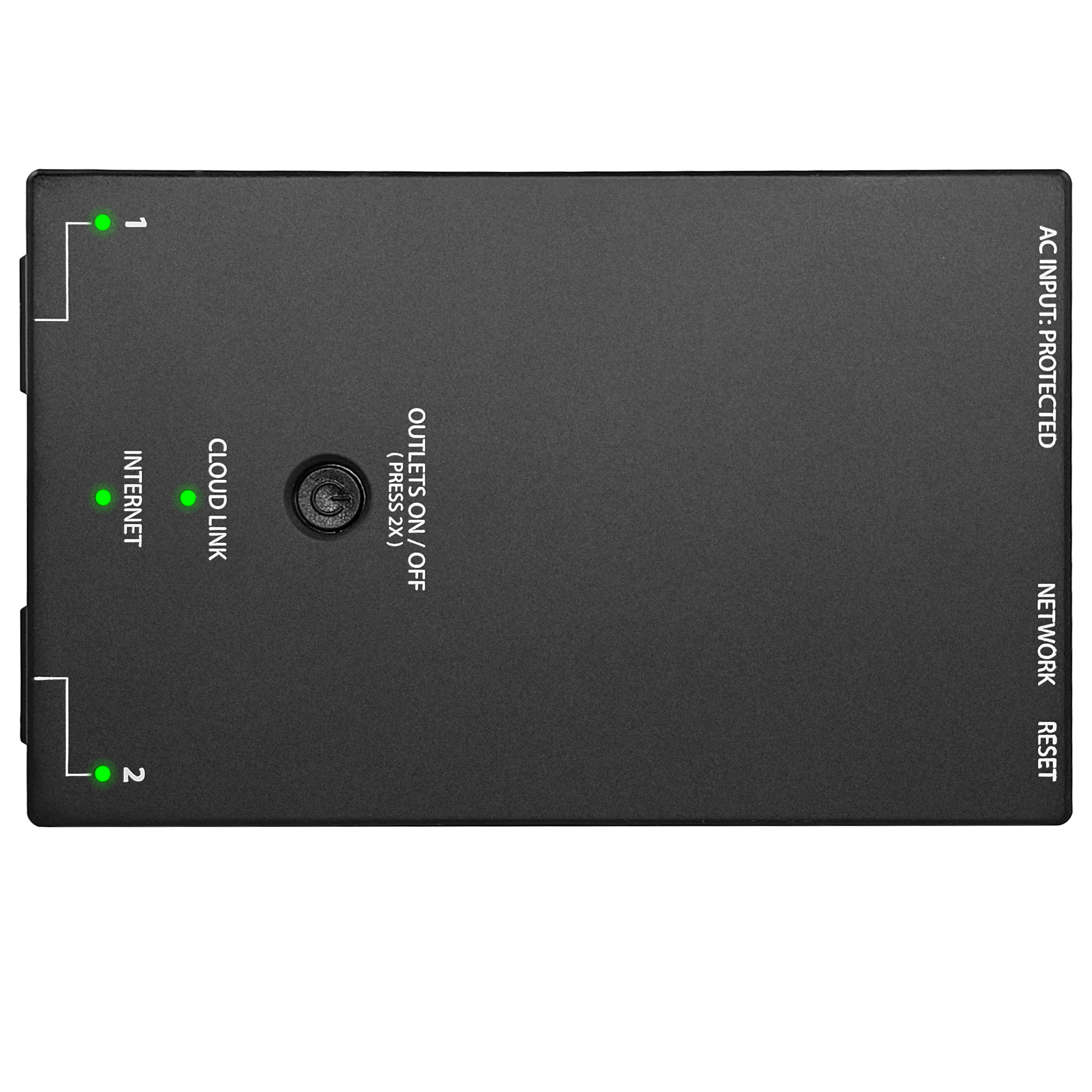

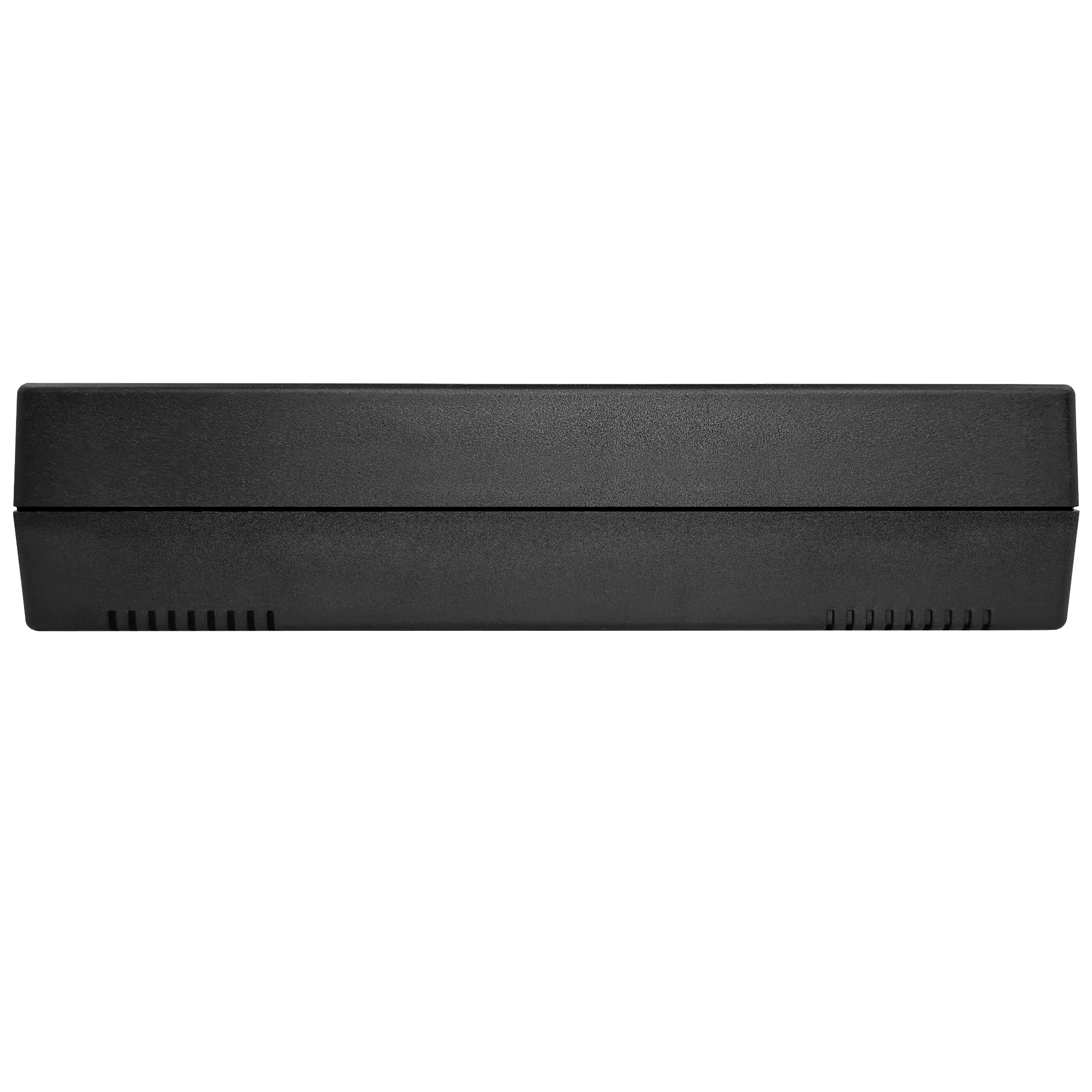

| Image (Top, Bottom) |
|
||
| Brief Description |
MSNswitch MAX is designed to automatically check if the network connection is normal. Should network connection be unstable / unreachable, it will automatically cycle power output. This ensures remote network (eg. router/modem) is healthy and connected. Features at a Glance:
|
||
| Package Contents | 1) Device 2) Quick Setup QR Card 3) IEC Power cable 4) LAN cable 5) Wall Mounting Template |
||
|

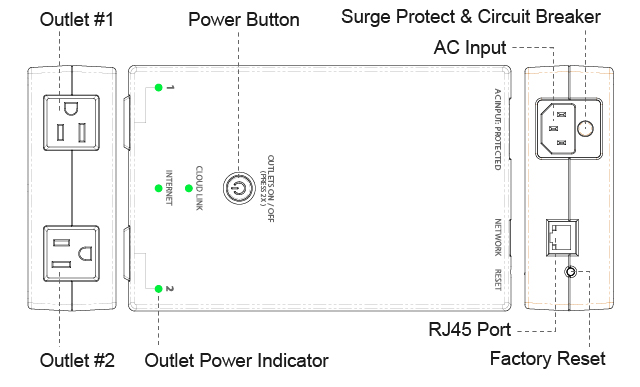

Description
|
 |
||
|
Description
|
 |
||

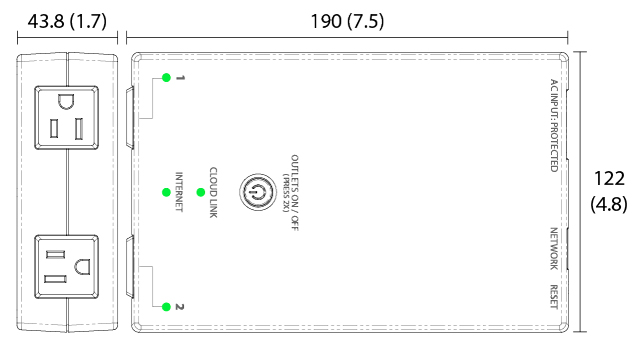

| Dimensions, mm (inch) |  |
||
| Dimensions, mm (inch) | 190 x 122 x 43.8 mm (7.5 x 4.8 x 1.7 inches) | ||
| Socket Type | 2x NEMA 5-15R (Type B), Individually IP Controllable. | ||
| Electrical Rating | Input: 120VAC, 13A (Max continuous rating) 50/60Hz Output: 120VAC, 13A (Max combined total of two outlets) 50/60Hz Power: 1560W Safe Voltage: 100VAC ~ 125VAC |
||
| Breaker | 15A (Max trip current) Resettable Circuit Breaker (ANSI / UL 60320-1) |
||
| Power Input Connector | IEC C-14 socket | ||
| Power Cable | 1.5M 300V 14AWG cable with IEC C-13 and NEMA 5-15P | ||
| Power Button | Press 2x to toggle all outlets On or Off. | ||
| Factory Reset | Hold for 10 seconds: Initiates a System Restart (Outlet power unchanged) Hold for 20 seconds: Reset to Factory Default |
||
| LED Indicator | 2x Outlet Power 1x Internet 1x Cloud Link |
||
| Time / Date | Built-in Real-Time Clock | ||
| Power Metering |
Individual Outlet Metering
Note: Metering values are provided for reference and informational purposes only. No warranty is made to the accuracy of these values. |
||
| Voltage Protection Rating | L-N 600V, L-G 600V, N-G 600V | ||
| Surge Protection | MOV GDT AC Port: 1kV Line to Line; 2kV Line to Earth; Signal Port 1kV. |
||
| Electrostatic Discharge (ESD) | Air ±8KV, Contact ±4KV | ||
| Electrical Fast Transient (EFT) Protection | IEC 61000-4-4 Level 3 | ||
| EMI/RF Filtration | Minimum Insertion Loss in dB (on 50 Ohms system): Common Mode Insertion Loss: -16.0dB @10kHz, -35.0dB @100kHz, -56.4dB @1Mhz Differential Insertion Loss: -16.3dB @10kHz, -36.1dB @100kHz, -56.3dB @1Mhz |
||
| Ethernet | RJ45, 10 / 100 Base-T | ||
| Wireless | Wi-Fi 6 (802.11b/g/n/ax) 2.4GHz & Bluetooth® 5 (LE) | ||
| Supported Protocols | RESTful API, HTTPS | ||
| Certification | FCC ID: 2AC7Z-ESPC6WROOM1, UL (TBA), RoHS (TBD) | ||
| Auto Reboot (Internet Self Healing) | Configure via APP / Cloud4UIS / Web User Interface (Patent: US8212396B2) | ||
| Control and Management Interface |
|
||
| Operating Environment | 0°C ~ 60°C at 10% ~ 90% relative humidity. For indoor use only. | ||

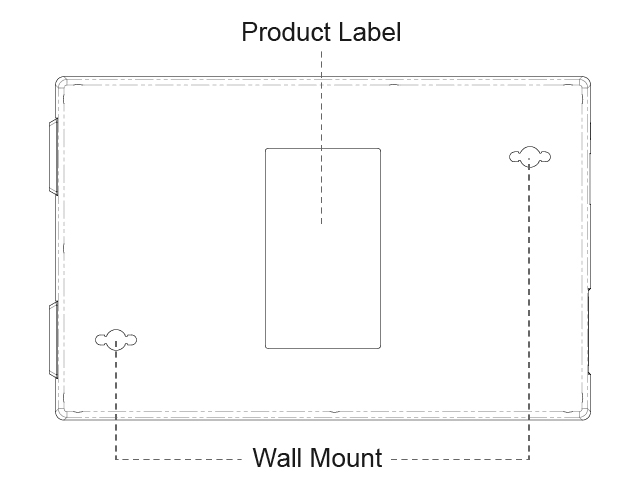

| Device Mounting | Wall-Mountable. Template included. | ||
| Casing Material & Finish | Polycarbonate, PC (5VA Flame Graded), Matte Black | ||
| Package Options |
|
