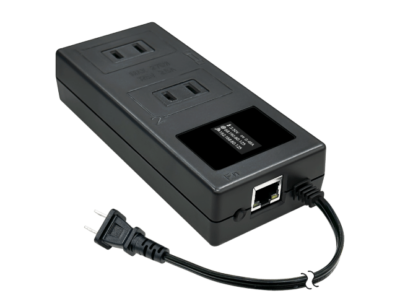

ezOutlet 5-2R

ezOutlet 5-2R

2.5A DUAL OUTLETS

The ezOutlet 5-2R features two individually controllable AC outlets accessible via LAN or Cloud. It is ideal for powering network devices such as Gateways/Routers, Wireless AP / Bridges, Hubs, Switches, IP Cameras, etc. Designed for autonomous operation, it can resolve network issues without outside intervention.

MAIN FEATURES
Custom
Auto Reset
2x NEMA 1-15R
2.5A Resettable Fuse
Built-in GUI +
RESTful API
Real-Time
Clock
Wi-Fi 2.4GHz
BT v4.2 BLE
LAN Port
Informative
Display
Resettable
2.5A Fuse

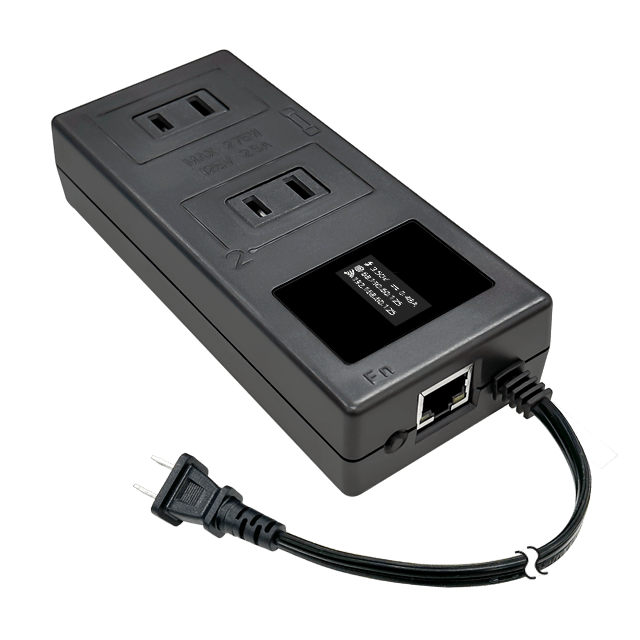

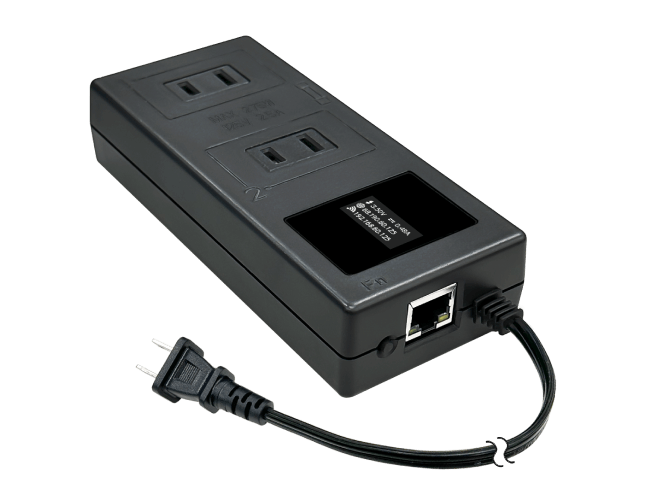

ezOutlet 5-2R

with Two AC Output, Wi-Fi, Ethernet, Auto Reboot

The ezOutlet 5-2R features two individually controllable AC outlets accessible via LAN or Cloud. It is ideal for powering network devices such as Gateways/Routers, Wireless AP / Bridges, Hubs, Switches, IP Cameras, etc. Designed for autonomous operation, it can resolve network issues without outside intervention. Once set up, it continuously monitors connectivity and automatically resets the device if connection is lost, significantly reducing the need for manual attention, truck rolls, and costly downtimes.

Alternatively, it can also be configured for remote power On, Off, or Reset according to schedule or manually. This helps ensure that the remote network device (eg. router/modem) remains healthy and connected.

Application:

  • Small office or home users.
  • IT / Network managers
  • Internet or VoIP service providers
  • Kiosks or ATM providers
  • Vending machine or Commercial Digital displays
Wired and Wireless Flexibility

Wired and Wireless Flexibility

The EZ-73a comes equip with Ethernet, WiFi and Bluetooth, offering user flexibility installation options. This enables users to choose the optimal connectivity method for their job site needs.

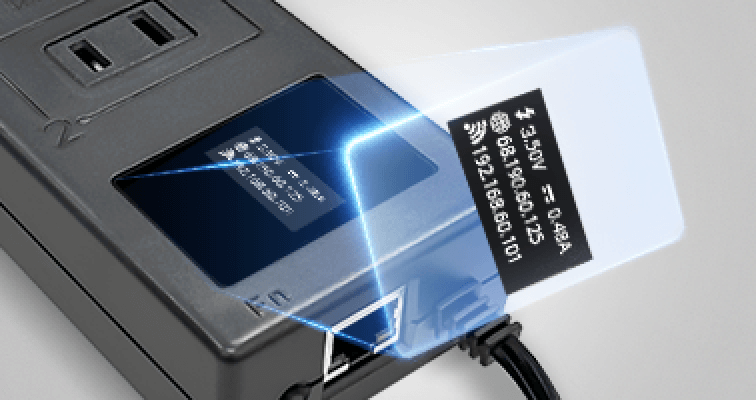

OLED Convenience

OLED Convenience

Equipped with a built-in OLED display, the device provides network and connection information, aiding technicians in on-site troubleshooting.

Cloud4UIS Management Platform

Manage and control ezOutlet 5-2R through Cloud4UIS.com or the ezDevice app.

  1. Install ezDevice APP and scan to locate device.
  2. Device connects to nearest Wi-Fi AP or is connected via Ethernet cable to router.
  3. Device auto pairs with user's Cloud4UIS account.
Cloud4UIS Platform
  • Remotely Access and control devices
  • Manage and monitor devices on a single platform
  • Share device with other cloud users
  • Assign access permission to shared user
  • Designate Favorite to make unit easily available
  • Stay updated with latest OTA firmware upgrades
  • 2x NEMA 1-15 socket (2-pins) polarized.
  • Built-in circuit breaker.
  • Informative OLED display.
  • Patented Auto Reset method when ping fails.
  • Support both Ethernet and Wi-Fi connection.
  • Bluetooth support.
  • Remote management via the free ezDevice APP or Cloud4UIS.com platform.
  • Upgradeable to Business Cloud platform for managing multiple units and users.
  • Schedule one-time or recurring power On, Off, or Reset actions.
  • Built-in device GUI.
  • RESTful API support.
ezOutlet 5-2R

Ver.:5c15

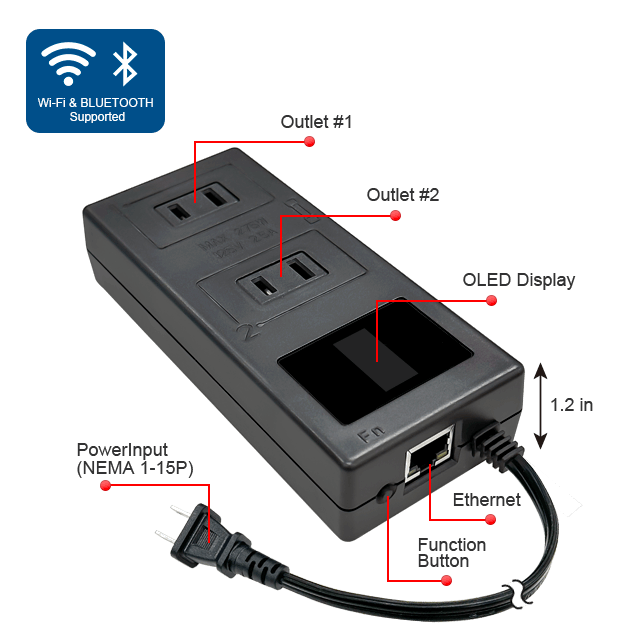

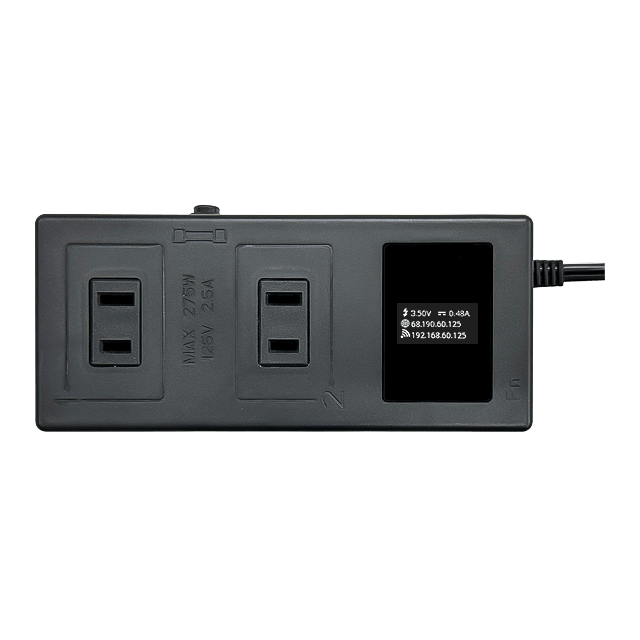

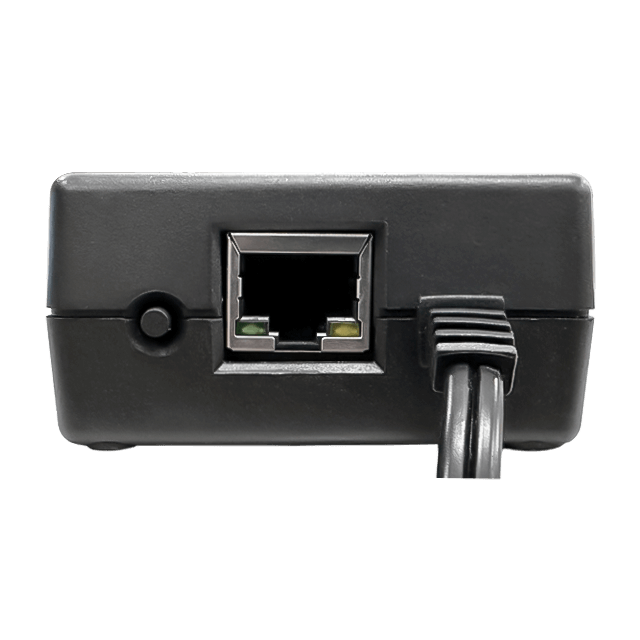

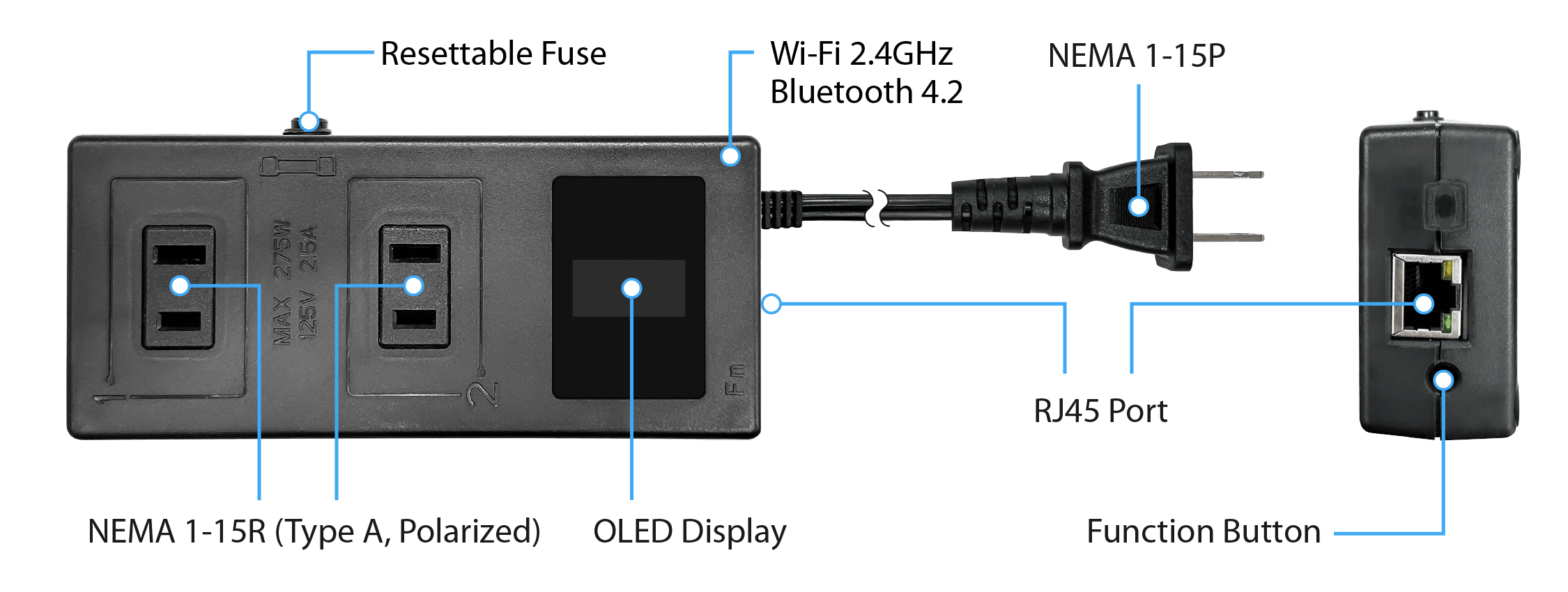

Description Top & SidesTop & Sides Diagram

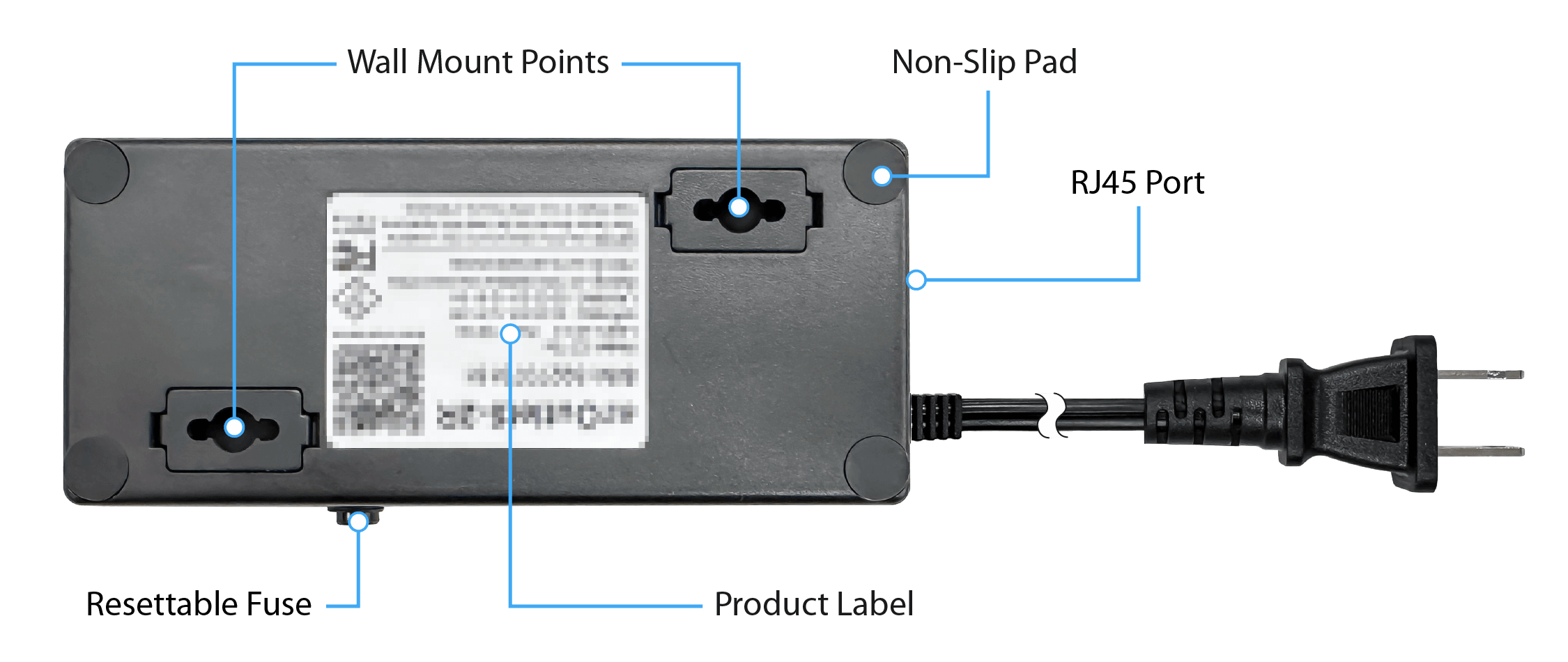

Description BottomBottom Diagram
Socket type2x NEMA 1-15 Receptacle (Type A, Polarized)
Electrical RatingAC 125V 50/60Hz 2.5A MAX 275W
Breaker2.5A Resettable Fuse
Control and management interface:
  • ezDevice APP (‘Ad free’ on Android / iOS)
  • Cloud4UIS.com
  • Web Interface
  • Device ‘Function Button’
  • API (by request)
Function Button
  • Press & Hold to;
    1. Enter OLED MENU (Enable Auto Reset, Power On/Off/Reset, etc)
    2. Execute Selection
Network Access
  • Ethernet 10/100 Base-T
  • Wi-Fi 2.4Ghz (802.11b/g)
  • Bluetooth V4.2 BLE
SupportAndroid APP / iOS APP / Microsoft Edge / Chrome / Java / Safari browser
CertificationFCC ID (USA), NCC (Taiwan), KCC (Korea), CE (Europe), CMIIT ID (China), ISED ID (Canada), MIC (Japan)
Operating Environment0°C ~ 50°C at 10%. ~90% relative humidity. For indoor use only.
Packaging Brown Box or Bulk
Packaging Diagram
Package dimension65 x 30 x 105 mm
